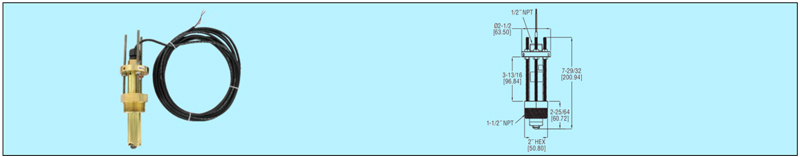

RSA-TVW Paddlewheel Flow Transmitter
Applications & Features
- For monitoring liquid flow rates in pipes from 1-1/2 to 40˝ , integral 4- 20 mA output
- Bearings and shaft offer excellent wear protection even in applications with particulate for long life
- One unit adjustable over a large pipe size range
- Sensor technology uses inductive sensing to sense the blades of the impeller therefore does not use magnets allowing low flow rate monitoring with no concerns regarding magnetic material in the flow
Specifications
Service: Water-based fluids
Range: 1.2 to 25 ft/s (0.37 to 7.62 m/s)
Wetted Materials: Body and fitting: Brass; O-ring: FKM; impeller: 316 SS; shaft: Tungsten carbide; bearing: PTFE Linearity: ±1.0%FS
Repeatability: ±0.5%FS
Temperature Limits: -40 to 212°F (-40 to 100°C)
Pressure Limits: 400 psig (27.6 bar) @ 100°F (37.8°C), 325 psig (22.4 bar) @212°F (100°C)
Process Connection: 1-1/2˝ NPT male, optional weldolet accessories
Output: 4-20 mA
Power Requirement: 10 to 35 VDC, 40 mA (max.) Electrical Connection: 22 AWG shielded UL type PTLC rated 105°C, 20´ (6.1 m) long with cable gland
Enclosure Rating: IP67
Weight: 3 lb (1.36 kg)
Approvals: CE
Models
IEFS Insertion Electromagnetic Flow Transmitter
Applications & Features
- For various liquids flow measurement in 4” to 36”pipe
-
Setup LCD display can field configure various applications with one model through multiple configurations i.e. pipe size/material, liquid type, analog/pulse/frequency/alarm/ communication outputs, damping, and calibration factor
- High accuracy in changing temperature, density or viscosity
-
Simple setup wizard and installation tool for quick and precise installation
-
No moving parts, durable, maintenance free and no fouling
-
Optional isolation valve for hot-tap application
Specifications
Service: Compatible non coating, conductive liquids
Range: 0~20 ft/s (0~6 m/s)
Accuracy: High accuracy: ±0.5% of reading at calibrated velocity; ±1% of reading from 2~20 ft/s (0.6~6 m/s); ±0.02 ft/s (±0.006m/s) at <2ft/s (0.6m/s). Standard accuracy:±1% FS
Applicable Pipe Size: High accuracy: 4 to 10˝ (101 to 254 mm); Standard accuracy: 4 to 36˝ (101 to 914 mm)
Diameter Length Requirements: >10 upstream, >5 downstream
Wetted Materials: Body shaft/fitting:316SS; Electrodes: 316SS; Electrode cap: Polymer/Polystyrene; O-ring: Silicon.
Temperature Limits: Ambient: -20~60°F (-29~71°C);
Process: 15~250°F (121°C); Storage: -40~185°F (-40~85°C)
Process Connection: 1˝ NPT, optional weldolet accessories
Pressure Limits: 400 psi (27.6 bar) @ 100º F (37.8°C)
Pressure Drop: < 0.1 psi at 12 ft/s in >=4˝ (101.6 mm) pipe
Outputs: (1) Analog: 4-20mA, 0-5V, 0-10V or 2-10V (display selectable); (2) Pulse/Frequency: 0-15V peak pulse, 0-500 Hz or scalable pulse output (display selectable); (3) Alarm: (I) Empty pipe detection or minimum/maximum velocity, (display selectable); II) Reverse flow output indication
Electrical Connection: Removable terminal blocks, PG 16
Display (-LCD option): large graphic LCD with backlight.
Conductivity: >20 microsiemens
Enclosure Material: Powder coated die cast aluminum
Enclosure Ratings: NEMA 6P (IP68) (Non display models); NEMA 4X (IP66) (-LCD option)
Approvals: BTL, CE, NSF/ANSI 61 and 372 pending
COMMUNICATIONS (-COM OPTION): BACnet MS/TP or Modbus RTU protocol (default disabled, display selectable). Supported Baud Rates: 9600, 19200, 38400, 57600, 76800, or 115200 bps (display selectable).Device Load: 1/8 unit load.
Models

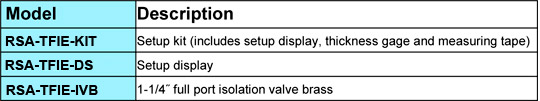

ACCESSORIES
