RSA-TTD2A,3,4,5,6A Digital Temperature

Applications & Features

• These transmitters/controllers can be used for temperature monitoring & controlling in duct (RSA-TTD2A), water and steam pipe(RSA-TTD4A) or outside air(RSA-TTD3A) and remote(RSA-TTD5A), strap-on(RSA-TTD6A) models
• High performance digital temperature sensor and digital technology applied, ensure accurate measurement fast response and good long term stability
• Multiple outputs selection, over voltage and reverse polarity protection, high reliability and anti-interference capability
• Optional relay for alarm or ON/OFF control
• Wide working temperature range and fast response
• LCD & function keys can set parameters and calibrate output, so the product can become a stand alone controller
• High protection rate up to IP65

Specifications

Sensor: Digital temperature sensor
Range: see models
Output: 4~20mA (3 wires) &0~10VDC, RS485/Modbus
Output Load: ≤500Ω (current), ≥2KΩ (voltage)
Relay: 1×SPST, 3A/30VDC, 3A /250VAC
Accuracy: <±0.5°C@ -10~85°C, see accuracy curve
Power: 16~28VAC/16~35VDC
Work Temp.: -30~70°C (LCD:0~50°C), 0~95%RH (Non cond.)
Storage Temperature: -30~70°C (LCD:-10~60°C)
Medium Temperature: -40~100°C (TTD2N, TTD4N)
Housing: ABS, SS probe (φ6mm), SS well
Cable (TTD5N): Black, silicone, 3*0.3mm², 1m length,
-60~180°C, Rconductor=0.069Ω/m, Rinsulation >100MΩ (25°C)
Hose clamp( TTD6N ): stainless steel, diameter 15~150mm
Protection:IP65(IP68 for TTD5N’s probe,1m water depth)
Weight: TTD2N:315g; TTD3N:195g; TTD4N:511g;
RSA-TTD5A:345g; RSA-TTD6A:390g
Approval: CE
Optional Accuracy: 0.25°C@ -20 ~105°C
(Add “H” after part number)
Display and Keys: 4 digits LCD, with unit indication,
backlight, 3 touch keys, see more details on LCD
& Keys operation

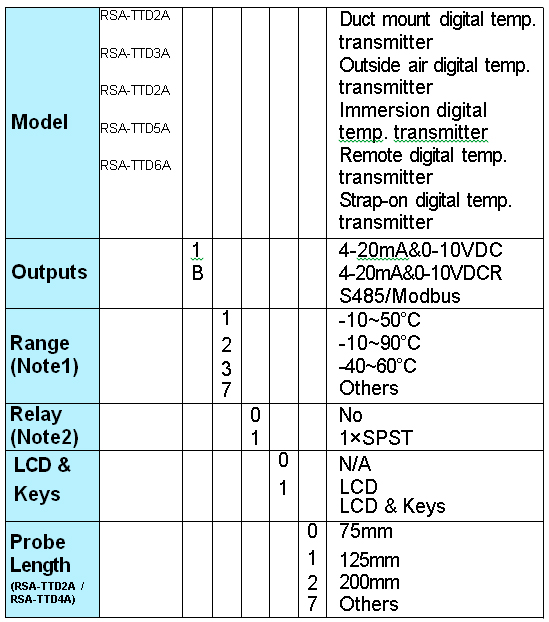

Models





Note 1: Every product can be set ranges with accuracy ≤±0.5°C @-10~85°C through LCD & function keys; code 7 product can be set all ranges in -40~125°C with accuracy≤±0.5°C.

Note 2: Refer to working environment ambient guide GB/T4200 and WBGT, etc., the relay default settings are ON-30.0°C/OFF-29.5°C, and can be customized or set through LCD & function keys
