RSA-TT2,3,4,5,6A Series Temperature Sensor/Transmitter

Aplications & Features

• Used for temperature measurement in duct (RSA-ST2N), water and steam pipe(RSA-ST4N) , outside(RSA-ST3N) and remote(RSA-ST5N), strap-on (RSA-ST6N) models
• High performance temp. sensor and long term stability
• Light and state of art housing, easy installation
• Multiple outputs selection, over voltage and reverse polarity
  protection, high reliability and anti-interference capability
• Wide temperature range and fast response

Specifications

Sensor: PT1000, class A
Range: see models
Output: 4~20mA (2 wires) or 0~10VDC, 0~5VDC
Output Load: ≤500Ω (current), ≥3KΩ (0~10VDC), ≥2KΩ(0~5VDC)
otal accuracy: ≤±0.5^°C @0~50°C, see accuracy curve
Power: Current 18.5~35VDC (RL=500Ω), 8.5~35VDC (RL=0Ω)
             Voltage 16~35VDC, 16~28VAC
Work Temp.(Whole product): -30~70°C, 0~95%RH (Non cond.)
Medium Temperature (Probe): -40~100°C
Storage Temperature: -30~70°C
Housing: fireproof ABS, SS probe (φ6mm), SS Well
Cable (RSA-ST5N​ ): Black, silicone, 2*0.3mm², 1m length, -60~180°C, Rconductor=0.069Ω/m, Rinsulation >100MΩ (25°C)
Hose clamp (RSA-ST6N​  ): stainless steel, diameter 15~150mm
Protection: IP65(IP68 for TT5N’s probe, 1m water depth)
Weight: RSA-TT2A:142g ; RSA-TT3A:180g; RSA-TT4A:350g; RSA-TT5A:172g;RSA-TT6A:220g

Approval: CE
Accuracy curve:

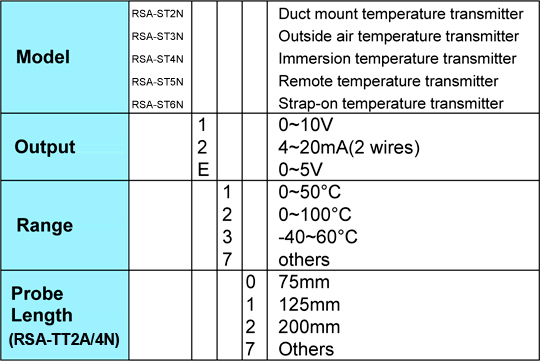

Models

1. RSA-ST4N SS install well is the same as RSA-ST4, A-T0/T1/RSA-ST2
2. The standard cable of RSA-ST5N is 1m. It can be ordered for other length of integer meters, such as RSA-ST5N11-2,which means the cable length is 2 m.

Accessories

RSA-TT4A/TTD4N Stainless Steel Well
RSA-TT2A/RSA-TTD2A  Install Flange
Model: A-T0 (L=75mm)
             A-T1 (L=125mm)
             A-T2 (L=200mm)
