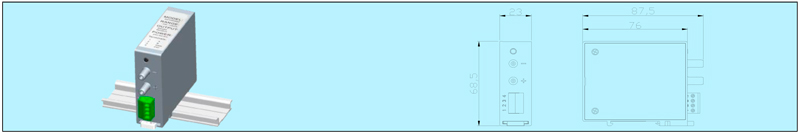

RSA-TDPR Rail Mount Differential Pressure Transmitter

Applications & Features

• Designed specifically for standard 35mm DIN rail mount, small enough for compact installation in equipments and instruments
• Apply high accuracy MEMS sensor and digital technologies, can measure differential pressure on equipments such as isolator, clean bench and cabinet for pharmaceutical, biological safety and medicine research, microelectronics, hazardous chemicals operation and various laboratories
• Multiple ranges, engineering units and outputs
• Good performance, accuracy 1.0% or 0.5%FS selectable
• Function keys: zero reset, unit select, response time set, etc

Specifications

Medium: non-combustible, non-corrosive air, insensitive to moisture, dust, condensation and oil
Temp.: working,-20~70°C; medium, 0~60°C; Compensation, 0~50°C
Working Pressure: overload 10xFS, burst 15xFS
Performance:

Power: Current: 18.5~35VDC (RL=500Ω), 8.5~35VDC (RL=0Ω) Voltage: 16~28VAC/ 16~35VDC
Zero reset: outside key to operate easily
Housing: Materials: Fire-proof ABS/PC; Protection: IP30 Approval: CE

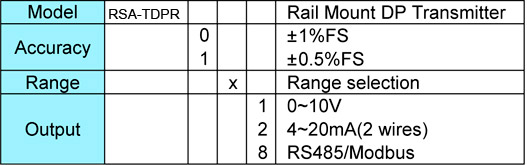

Models

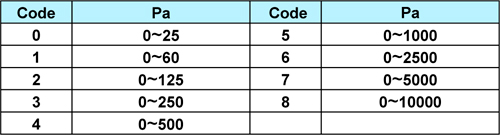

Measuring Ranges

For zero center models, add “Z” at the end of the model. For example, RSA-TDPR*1*Z, means the range is -30-0-30.Only 1~6 have this selection.

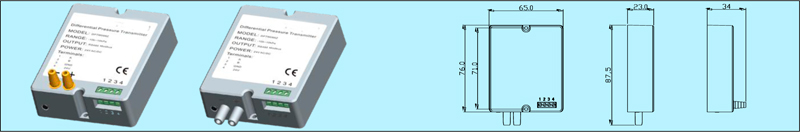

RSA-TDPR Mini Differential Pressure Transmitter

Applications & Features

• Very compact size, good for application in small equipments and instruments
• Apply high accuracy MEMS sensor and digital technologies, can measure differential pressure on equipments such as isolator, clean bench and cabinet for pharmaceutical, biological safety and medicine research, microelectronics, hazardous chemicals operation and various laboratories
• Multiple ranges, engineering units and outputs
• Good performance, accuracy 1.0% or 0.5%FS selectable
• Function keys: zero reset, unit select, response time set, etc

Specifications

Medium: non-combustible, non-corrosive air, insensitive to moisture, dust, condensation and oil
Temp.: working,-20~70°C; medium, 0~60°C; Compensation, 0~50°C
Working Pressure: overload 10xFS, burst 15xFS Performance



Response Time: 0.5/1/2/5s, can be set by keys
Process Connection: 5mm ID tubing, two sides selectable Output: 0~10V, 4~20mA (2 wires), RS485 selectable Output Load: ≤500Ω (current), ≥2kΩ (voltage)
Power: Current: 18.5~35VDC (RL=500Ω), 8.5~35VDC (RL=0Ω) Voltage: 16~28VAC/ 16~35VDC
Zero reset: outside key to operate easily
Housing: Materials: Fire-proof ABS/PC; Protection: IP30
Approval: CE

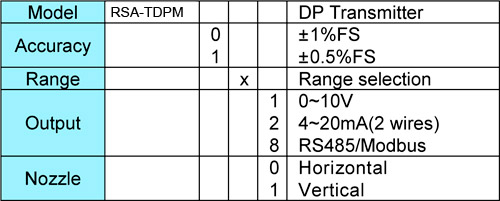

Models

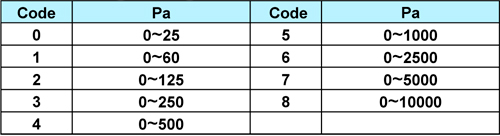

Measuring Ranges


For zero center models, add “Z” at the end of the model. For example, DPTM*1**Z, means the range is -30-0-30.Only 1~6 have this selection.
