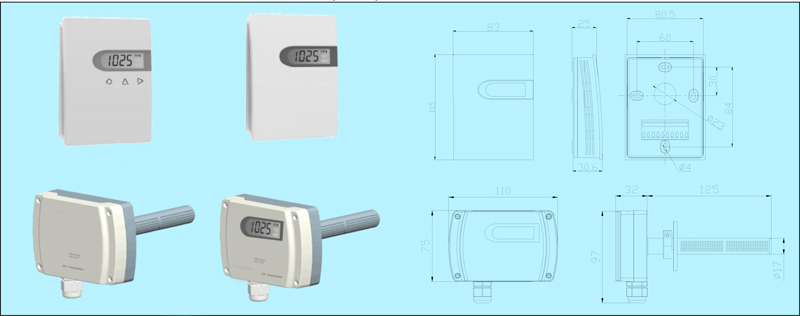

RSA-TCO2 Carbon Dioxide (CO2) Transmitter
Applications & Features
- The transmitters are designed for monitoring & controlling indoor air quality (CO2 concentration)
- RSA-TCO2 are suitable for wall mount and RSA-TCO2D are suitable for duct mount
- Using SenseAir’s patented gold-plated infrared(NDIR) CO2 sensor, the products can supply very precise measurement with good temperature compensation
- Field selectable outputs of 0~10V or 4~20mA
- More than 15 years sensor life without extra maintenance
Specifications
Sensor: NDIR sensor, with ABC algorithm (Automatic Baseline Correction)
Sampling Method: diffusion
Accuracy: ± (40+3%MV) ppm
Response time: <10s (30cc/min, low airflow)
Drift: <±10ppm/year
Range: 0~2000ppm or others (0~10000ppm)
Output: field selectable outputs 4~20mA or 0~10V
Load resistance: ≤500Ω (Current output), ≥5kΩ (Voltage output)
Power supply: 24 VAC/VDC±20%
Working environment: 0~50°C, 0~95%RH (Non-cond.)
Temp. Compensation: 0~50°C
Storage temperature: -40~70°C
Housing material: PC
Protection: IP30 (RSA-TCO2A), IP65 (RSA-TCO2D)
Approval: CE

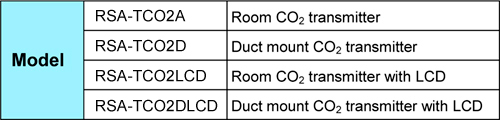

Models

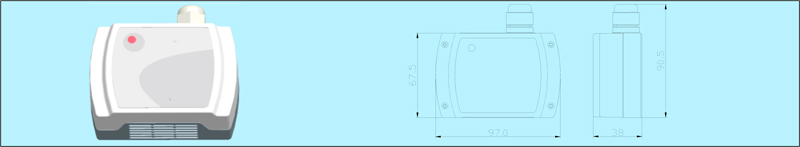

RSA-TCOA Wall Mount Carbon Monoxide (CO) Transmitter
Applications & Features
-
~ It’s necessary to control the ventilation of car park and vehicle maintenance and test work shop according to many building HVAC regulations. Considering of energy efficiency, demand controlled ventilation(DCV) is recommended. It is designed for the applications which can effectively control the ventilation to safety and energy-saving operations
- Environmental friendly electrochemical sensor gives good long term accuracy, sensitivity and reliability
- Better than most other sensors 1~3 years life span, it gives more than 7~10 years life span to protect customer’s long term investment
- Better than most other sensors which may need recalibration every 6~12 months, it only need periodical recalibration as long as 3~5 years or more, maintaining 5% accuracy
- Two wire 4~20mA output, the simplest and most economical way to connect with DDC (some brands can be directly connected without additional power supply)
- Digital technology applied, over voltage and reverse polarity
protection, high reliability and anti-interference capability
- LED working status indication, with high protection housing
Specifications
Sensor: Electrochemical
Sensor life: min 7~10 years life span
Range: 0~100ppm, or others(0~200/0~400ppm selectable)
Accuracy: ±5%FS
Sampling Methods: Diffusion
Response Time: <60 s
Warm up time: <2 mins
Power: 12.5~35VDC
Output: 4~20mA (2 wires)
Output Load: 0~1022Ω,Vmin=12.5V + 0.022*RL
Work environment: 0~50°C, 0~90%RH (Non- cond.)
Storage temperature: -5~55°C
Housing: fireproof ABS+PC, UL94V-0
Protection: IP33
Weight: 150g
Approval: CE
