RSA-PDG Multifunction Digital Differential Pressure Gauge
Applications & Features
- Apply high accuracy MEMS sensor and digital technologies, can measure positive,negative or differential pressure. It can replace most of the traditional pointer mechanical gauges.
- It combines the gauge and two relays for control function
- It can measure and control system pressure of fan, blower, filter, furnace draft and orifice plate and can apply to various clean room, biological safety cabinet, clean bench, ducts collection, medical or pharmaceutical machine, etc.
- Suitable for surface, panel or flush mount
- Multiple ranges and engineering units selectable
- No any movable parts, no any effect on vibration
- The accuracy is up to ±1% FS and the range can be 25pa
- Function keys: zero calibrate, units select, relay set, etc.
- Optional arch LED display for output and alarm
Specifications
Medium: non-combustible, non-corrosive air, not sensitive to moisture, dust, condensation and oil
Medium Temp.: 0-60°C
Materials: cast aluminum housing and PC plate Work Environment: -20~70°C
Compensated Temp.: 0-50°C
Work pressure: 1, 2, 5 or 10Kpa for different ranges

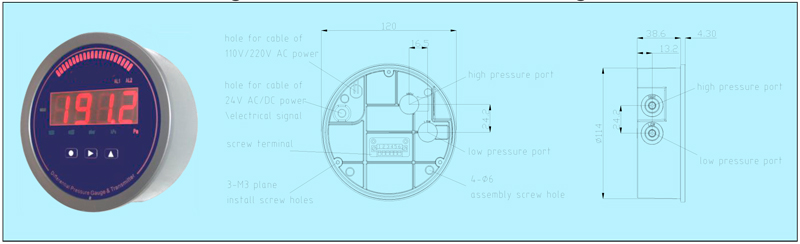

overload 5xFS, burst 10xFS Dimension: see diagram
Connection: 1/8” ID tubing, two pairs (on left side and back) Display: 4 bits 0.8” red LED
Relay output: 2×SPST, 3A×30VDC/250VAC or 1×Buzzer
Electrical wiring: cable or screw terminals
Accuracy: ±1.0% FS(±2.0%FS@25Pa range)
Long term stability: ±0.5%FS /Year
Thermal effect: <0.05%FS/°C(Zero), <0.08%FS/°C(FS) Response time: 0.5-30s
Power: 16-28V AC/ DC, optional 85-265V AC
Key: 3 touch buttons
Protection: IP65
Weight: 340g
Approval: CE
Accessory: A-S0 is standard including 2m/5mm ID tube, 3 pairs of screws and brackets. Options are A-S1, A-S2 and A-S7-X. They can be used for surface, panel or flush mount and should be ordered separately. See details in Accessories.
Models

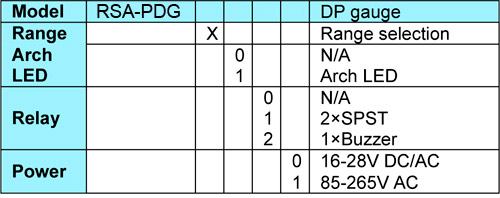

The stardard electrical connection is cable from the back of the enclosure. If select screw terminals instead, add suffix T after the model number

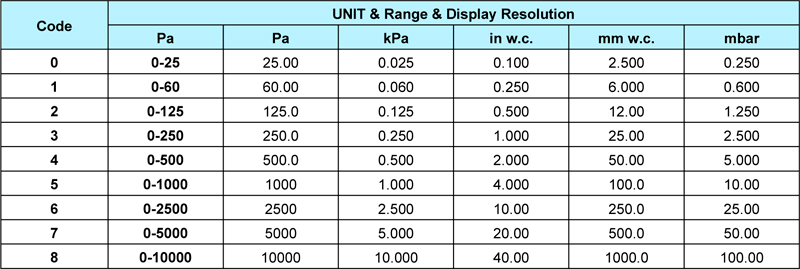

Measuring Ranges
- 5 engineering units can be set by the key and then the related LED will be on.
- For zero center models, add“Z”at the end of the model. For example, RSA-PDG1***Z, means -30-0-30pa. Only ranges 1~6 have this selection.
