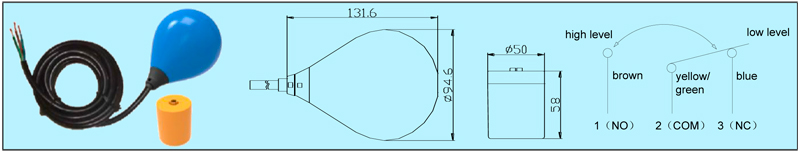

RSA-CN Cable Float Level Switch
Applications & Features
- RSA-CN level regulator is a float switch to control the pump, valve or alarm.
- Applied to various kinds of liquid (non-corrosive, high temperature, light density or turbulence)
- Special designed multi layers structure proves the inner chamber very well sealed, gives safe and reliable protection for inside mechanism
- Non-toxic polypropylene(PP) float body, environmental friend, even for daily life water
- The ball shape has no any edges, is particularly suitable for sewage water
Specifications
Contact: SPDT, 10A/250VAC
Electrical life: >106 cycles
Switch angle: ±40° (±5°)
Cable type and approvals:
Operating temperature: 0~60°C
Storage temperature: -20~80°C
Weight: float: 300g; counterweight: 200g; cable: 90g/m (CPE), 80g/m (PVC)
Volume: 498cm3
Materials: float PP; counterweight: ABS
Protection: IP68
Max working pressure: 1.2 bar (12m water depth)
Approval: CE
Models
Each carton packs 14 pcs for 3m or 5m and packs 10 pcs for 10m or 15m.

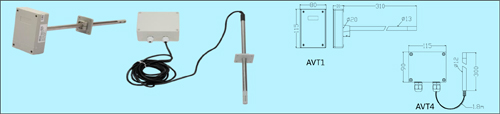

RSA-TVA Air Velocity Transmitter
Applications & Features
l It is designed for air velocity monitoring and controlling, can
meet most HVAC applications
l Based on thermal anemometer principle, use innovative and
sensitive hot-film sensor, which is insensitive to dust and dirt,
easy to install and maintain
l No any moving parts, provide accurate, reliable, sensitive
and long-term measurement, with wide range temperature
compensation
l Digital technology applied to ensure output linearity and
accuracy
l Over voltage and reverse polarity protection with high
reliability and anti-interference capacity
l Multiple outputs available, optional relay for alarm or
ON/OFF control
l 4 field jumper selectable ranges: 0~5/10/15/20 m/s
l Optional LCD& function keys, supports a variety of functions
as parameters setting, modifying and calibrating, etc. See
more details on LCD & Keys operation.
Specifications
Air velocity
Sensor: Hot-film sensor
Range: 0~5/10/15/20m/s or other (0~25m/s optional)
Accuracy: <±(0.4m/s+3% reading)
@1~20m/s,25°C,55%RH,1013hPa
Response time: 2 s
Angle dependence: < 3 %reading @ | Δα | < 10°
Temperature compensation: 10~40°C
Output: 4~20mA(3 wires), 0~10VDC, RS485/Modbus
Temperature
Sensor: Digital temperature sensor
Range: 0~50°C
Accuracy: <±0.5°C@0~50°C
Response time: 10s
Output: 4~20mA(3 wires),0~10VDC,RS485/Modbus
Relay: 1×SPDT, 1A/30VDC, 0.5A/125VAC
Output Load:≤500Ω(current), ≥2kΩ(voltage)
Power: 16~28VAC/16~35VDC
Working Temperature: -20~85°C,0~95%RH(Non cond.)
Housing: Fire-proof ABS
Protection: IP65
Approval: CE

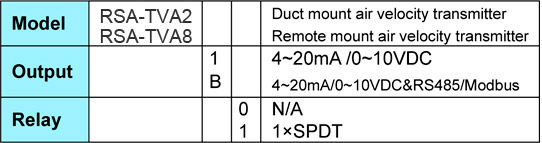

Models
All products are factory set to 4-20mA as output default, and can be set to 0-10V by jumper on the PCB.
