RSA-C4000/RSA-D4000 Differential Pressure Gage

Applications & Features

• They can measure system pressure of fan, blower, filter, furnace draft and orifice plates. And they can also measure pressures in various clean room, bio-safety cabinet, clean bench, industrial cleaner, medical equipment, air sampler, pharmaceutical and grain & food machine, etc.
• 63 models available for different ranges and units for various applications
• With simple and frictionless movement, it quickly indicates air or gas pressure, either positive, negative or differentialn
• The design resists shock, vibration and over pressuresnnn
• Ultra-thin design: the flushed part is only 38.5mm, and the overall thickness is only 52.2mm
• Patented state of art wave shape decorative front cover
• Standard accuracy up to 2% and high accuracy up to 1%FS
• Optional mirror scale overlay eliminating parallax reading error and corrosion resistant brushed 304 SS bezel
• RSA-C4000 (use trademark MAGHELIX) has very fine parts and assembly procedures to ensure extraordinary accuracy, stable and reliable for long term application. Each one have a Test Report for multiple points and precision packing. While RSA-D4000 (use trademark MAGHEGAGE) have simplified assembly and testing procedures without the report

Specifications

Service: Air and non-combustible compatible gases Housing: Die cast aluminum case and bezel, with PC cover Protection: IP67
Accuracy: ±2%FS (±3% on 125Pa, ±4% on 60Pa) @21°C Pressure Limits: -70 to 100 KPa

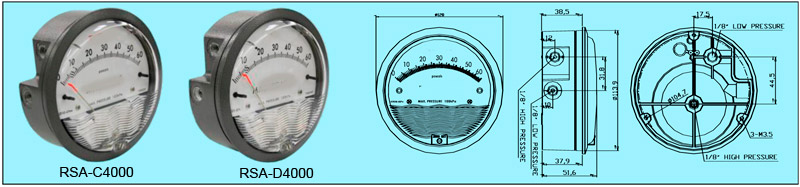

Size: 101.5mm (4") diameter dial face, 115.5 mm (4-9/16”) dia. opening for flush mount
Temperature Limits: -7 to 60°C (20 to 140°F)
Connections: 1/8" NPT female high and low pressure taps, duplicated, one pair side and one pair back
Weight: 440g
Mounting method: Flush or surface in vertical position Standard accessory: Model A-S10, including two 1/8”NPT

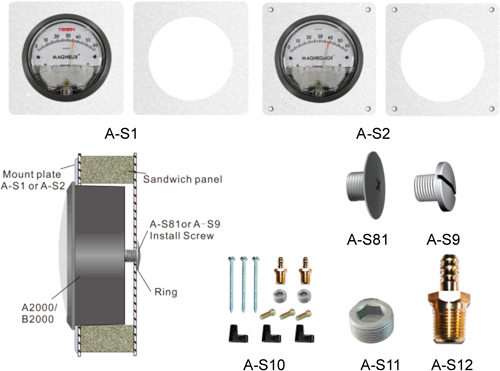

pipe plugs, two1/8” NPT to 3/16” rubber tubing adapters and three flush mounting adapters with screws
Other Accessories: sold separately, see Accessories

 Approval: RoHS (RSA-C4000)

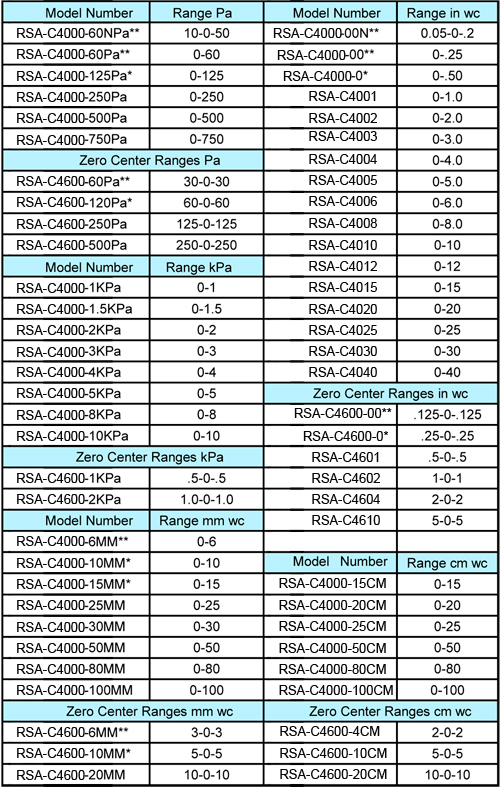

Models (For RSA-C4000, use B instead for RSA-D4000 series)

**Accuracy 4% *Accuracy 3%; others accuracy 2%

Options:

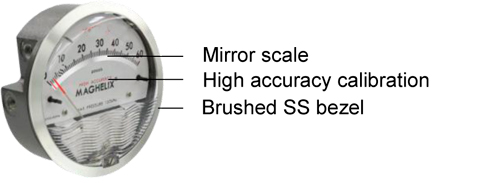

1. Mirror Scale: Eliminates parallax reading error, to order add suffix M.

2. Brushed 304 SS Bezel: Corrosion resistant bezel, to order add suffix S.

3. High Accuracy Calibration(only for RSA-C4000): Calibrated to accuracy

2%/1.5/1% respectively, which are as twice as standard MAGHELIX

gages,with Mirror Scale and Calibration Certificate, to order add suffix H.
