RSA-B10000 Mini Differential Pressure Gage

Applications & Features

• It can measure system pressure of fan, filter, furnace draft and orifice plate and can apply to various bio safety cabinet, clean bench, medical or pharmaceutical machine, etc.
• The mini size is very good for small equipment application
• Experienced magnetic connection, changeable lens plate design, easy to read
• Fiber glass ABS enclosure makes this product low cost and ensures ±5%F.S accuracy and reliability

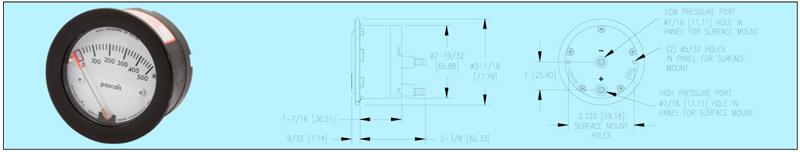

• 66.8mm diameter hole for panel mount. Standard pressure connections are barbed fitting for 4.8mm ID tubing
• Safe operation pressure can be up to 2bar. Over pressure protect is by a blow out membrane molded connected with the diaphragm. Accidental over-pressure will not damage the gage

Specifications

Service: Air and compatible gases
Housing: Glass filled nylon; acrylic lens
Accuracy: ±5% of full scale at 21°C
Pressure Limits: 2 bar continuous to either pressure ports Temperature Limits: -7~50°C
Size: 52.4 mm diameter dial face
Mounting Orientation: Vertical position.
Process Connections: Barbed, for 4.8mm ID tubing Weight: 170g

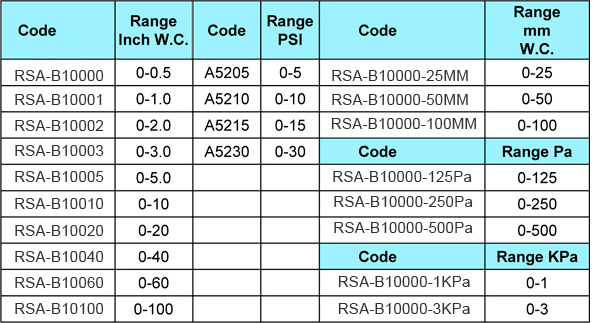

Models
